In ICE terms it is a text document; usually something produced by ICE that can be saved for use in another piece of software, or for later re-import into ICE.

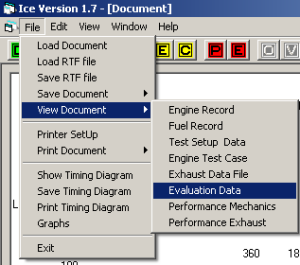

To view a document click on the File menu and select the View Document item.

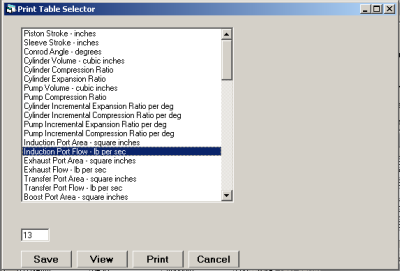

Choose the document type you want to view (Evaluation Data has been used in this example - it is slightly more complex) by clicking on it. Selecting Evaluation data will display the Print Table Selector.
Choose a report and click View. This will open a new MDI window displaying the requested document. What follows is a representation of such a document.
ICE - TWO STROKE ENGINE EVALUATION TABLE | Produced by ICE Version 1.7.0 | Date 19/05/2008 | ||||||||||||||
Make...COLLETT Version...E4 Type...Sleeve Scavenge...Loopflow Induction Auto | ||||||||||||||||
Bore | 3.344 | PStroke | 3.387 | Capacity | 29.747 | CR 9.5:1 | Choke 1.6 | |||||||||
CVol | 2.5709 | CStroke | 2.488 | EStroke | 2.488 | Tract Length 7.000 | ||||||||||
TIMING | TDC | BDC | IOA | ICA | EOA | ECA | TOA | TCA | BOA | BCA | S.Phase | |||||
degree | 360 | 180 | 220 | 80 | 111 | 249 | 125 | 235 | 132 | 228 | 180 | |||||
TEST CONDITIONS | ||||||||||||||||
Ambient Temp | ABP | Altitude | Fuel | AFR | Density | RN | Ignition | Adv % | Burn% | Triangle | Ratio | Exhaust | ||||
15 Degrees C | 14.69 | 0 ft | Petrol | 15:01 | 0.0764 | 25000 | Auto | 0.3 | 0.75 | 0.5 | 0.5 | No Pipe | ||||
RPM 8000 | Ignition Advance 23 degs | Combustion Period 75 degs | Induction Port Flow - lb per sec | |||||||||||||
Deg | Deg | Deg | Deg | Deg | Deg | |||||||||||
0 | 0.28673 | 60 | 0.00000 | 120 | 0.00000 | 180 | 0.00000 | 240 | 0.00000 | 300 | 0.30035 | |||||
1 | 0.28481 | 61 | 0.00000 | 121 | 0.00000 | 181 | 0.00000 | 241 | 0.00000 | 301 | 0.30144 | |||||
2 | 0.2828 | 62 | 0.00000 | 122 | 0.00000 | 182 | 0.00000 | 242 | 0.00000 | 302 | 0.30249 | |||||
3 | 0.2807 | 63 | 0.00000 | 123 | 0.00000 | 183 | 0.00000 | 243 | 0.04583 | 303 | 0.30349 | |||||
4 | 0.27851 | 64 | 0.00000 | 124 | 0.00000 | 184 | 0.00000 | 244 | 0.07197 | 304 | 0.30444 | |||||
5 | 0.27622 | 65 | 0.00000 | TOA | 0.00000 | 185 | 0.00000 | 245 | 0.0895 | 305 | 0.30535 | |||||
6 | 0.27383 | 66 | 0.00000 | 126 | 0.00000 | 186 | 0.00000 | 246 | 0.10347 | 306 | 0.30622 | |||||
7 | 0.27134 | 67 | 0.00000 | 127 | 0.00000 | 187 | 0.00000 | 247 | 0.11529 | 307 | 0.30704 | |||||
8 | 0.26874 | 68 | 0.00000 | 128 | 0.00000 | 188 | 0.00000 | 248 | 0.12565 | 308 | 0.30781 | |||||
9 | 0.26603 | 69 | 0.00000 | 129 | 0.00000 | 189 | 0.00000 | ECA | 0.13493 | 309 | 0.30855 | |||||
10 | 0.2632 | 70 | 0.00000 | 130 | 0.00000 | 190 | 0.00000 | 250 | 0.14336 | 310 | 0.30924 | |||||
11 | 0.26025 | 71 | 0.00000 | 131 | 0.00000 | 191 | 0.00000 | 251 | 0.15111 | 311 | 0.30989 | |||||
12 | 0.25717 | 72 | 0.00000 | BOA | 0.00000 | 192 | 0.00000 | 252 | 0.1583 | 312 | 0.31049 | |||||
13 | 0.25395 | 73 | 0.00000 | 133 | 0.00000 | 193 | 0.00000 | 253 | 0.16501 | 313 | 0.31106 | |||||
14 | 0.25059 | 74 | 0.00000 | 134 | 0.00000 | 194 | 0.00000 | 254 | 0.17132 | 314 | 0.31158 | |||||
15 | 0.24709 | 75 | 0.00000 | 135 | 0.00000 | 195 | 0.00000 | 255 | 0.17726 | 315 | 0.31206 | |||||
16 | 0.24343 | 76 | 0.00000 | 136 | 0.00000 | 196 | 0.00000 | 256 | 0.18289 | 316 | 0.3125 | |||||
17 | 0.23961 | 77 | 0.00000 | 137 | 0.00000 | 197 | 0.00000 | 257 | 0.18823 | 317 | 0.3129 | |||||
18 | 0.23562 | 78 | 0.00000 | 138 | 0.00000 | 198 | 0.00000 | 258 | 0.19332 | 318 | 0.31326 | |||||
19 | 0.23144 | 79 | 0.00000 | 139 | 0.00000 | 199 | 0.00000 | 259 | 0.19818 | 319 | 0.31358 | |||||
20 | 0.22707 | ICA | 0.00000 | 140 | 0.00000 | 200 | 0.00000 | 260 | 0.20283 | 320 | 0.31385 | |||||
21 | 0.22249 | 81 | 0.00000 | 141 | 0.00000 | 201 | 0.00000 | 261 | 0.20728 | 321 | 0.31409 | |||||
22 | 0.2177 | 82 | 0.00000 | 142 | 0.00000 | 202 | 0.00000 | 262 | 0.21156 | 322 | 0.31429 | |||||
23 | 0.21268 | 83 | 0.00000 | 143 | 0.00000 | 203 | 0.00000 | 263 | 0.21566 | 323 | 0.31444 | |||||
24 | 0.2074 | 84 | 0.00000 | 144 | 0.00000 | 204 | 0.00000 | 264 | 0.21962 | 324 | 0.31455 | |||||
25 | 0.20185 | 85 | 0.00000 | 145 | 0.00000 | 205 | 0.00000 | 265 | 0.22342 | 325 | 0.31462 | |||||
26 | 0.19601 | 86 | 0.00000 | 146 | 0.00000 | 206 | 0.00000 | 266 | 0.22709 | 326 | 0.31466 | |||||
27 | 0.18986 | 87 | 0.00000 | 147 | 0.00000 | 207 | 0.00000 | 267 | 0.23063 | 327 | 0.31464 | |||||
28 | 0.18335 | 88 | 0.00000 | 148 | 0.00000 | 208 | 0.00000 | 268 | 0.23405 | 328 | 0.31459 | |||||
29 | 0.17647 | 89 | 0.00000 | 149 | 0.00000 | 209 | 0.00000 | 269 | 0.23735 | 329 | 0.3145 | |||||
30 | 0.16915 | 90 | 0.00000 | 150 | 0.00000 | 210 | 0.00000 | 270 | 0.24054 | 330 | 0.31436 | |||||
31 | 0.16136 | 91 | 0.00000 | 151 | 0.00000 | 211 | 0.00000 | 271 | 0.24363 | 331 | 0.31418 | |||||
32 | 0.15301 | 92 | 0.00000 | 152 | 0.00000 | 212 | 0.00000 | 272 | 0.24662 | 332 | 0.31396 | |||||
33 | 0.14403 | 93 | 0.00000 | 153 | 0.00000 | 213 | 0.00000 | 273 | 0.2495 | 333 | 0.31369 | |||||
34 | 0.13431 | 94 | 0.00000 | 154 | 0.00000 | 214 | 0.00000 | 274 | 0.2523 | 334 | 0.31338 | |||||
35 | 0.12367 | 95 | 0.00000 | 155 | 0.00000 | 215 | 0.00000 | 275 | 0.25501 | 335 | 0.31302 | |||||
36 | 0.11188 | 96 | 0.00000 | 156 | 0.00000 | 216 | 0.00000 | 276 | 0.25763 | 336 | 0.31262 | |||||
37 | 0.09856 | 97 | 0.00000 | 157 | 0.00000 | 217 | 0.00000 | 277 | 0.26017 | 337 | 0.31217 | |||||
38 | 0.08304 | 98 | 0.00000 | 158 | 0.00000 | 218 | 0.00000 | 278 | 0.26263 | 338 | 0.31168 | |||||
39 | 0.06384 | 99 | 0.00000 | 159 | 0.00000 | 219 | 0.00000 | 279 | 0.26501 | 339 | 0.31114 | |||||
40 | 0.0357 | 100 | 0.00000 | 160 | 0.00000 | IOA | 0.00000 | 280 | 0.26732 | 340 | 0.31055 | |||||
41 | 0.00000 | 101 | 0.00000 | 161 | 0.00000 | 221 | 0.00000 | 281 | 0.26955 | 341 | 0.30991 | |||||
42 | 0.00000 | 102 | 0.00000 | 162 | 0.00000 | 222 | 0.00000 | 282 | 0.27171 | 342 | 0.30922 | |||||
43 | 0.00000 | 103 | 0.00000 | 163 | 0.00000 | 223 | 0.00000 | 283 | 0.27381 | 343 | 0.30848 | |||||
44 | 0.00000 | 104 | 0.00000 | 164 | 0.00000 | 224 | 0.00000 | 284 | 0.27584 | 344 | 0.30768 | |||||
45 | 0.00000 | 105 | 0.00000 | 165 | 0.00000 | 225 | 0.00000 | 285 | 0.2778 | 345 | 0.30684 | |||||
46 | 0.00000 | 106 | 0.00000 | 166 | 0.00000 | 226 | 0.00000 | 286 | 0.2797 | 346 | 0.30594 | |||||
47 | 0.00000 | 107 | 0.00000 | 167 | 0.00000 | 227 | 0.00000 | 287 | 0.28154 | 347 | 0.30498 | |||||
48 | 0.00000 | 108 | 0.00000 | 168 | 0.00000 | BCA | 0.00000 | 288 | 0.28331 | 348 | 0.30397 | |||||
49 | 0.00000 | 109 | 0.00000 | 169 | 0.00000 | 229 | 0.00000 | 289 | 0.28503 | 349 | 0.30289 | |||||
50 | 0.00000 | 110 | 0.00000 | 170 | 0.00000 | 230 | 0.00000 | 290 | 0.28669 | 350 | 0.30176 | |||||
51 | 0.00000 | EOA | 0.00000 | 171 | 0.00000 | 231 | 0.00000 | 291 | 0.28829 | 351 | 0.30057 | |||||
52 | 0.00000 | 112 | 0.00000 | 172 | 0.00000 | 232 | 0.00000 | 292 | 0.28984 | 352 | 0.29931 | |||||
53 | 0.00000 | 113 | 0.00000 | 173 | 0.00000 | 233 | 0.00000 | 293 | 0.29134 | 353 | 0.29799 | |||||
54 | 0.00000 | 114 | 0.00000 | 174 | 0.00000 | 234 | 0.00000 | 294 | 0.29278 | 354 | 0.2966 | |||||
55 | 0.00000 | 115 | 0.00000 | 175 | 0.00000 | TCA | 0.00000 | 295 | 0.29417 | 355 | 0.29514 | |||||
56 | 0.00000 | 116 | 0.00000 | 176 | 0.00000 | 236 | 0.00000 | 296 | 0.2955 | 356 | 0.29361 | |||||
57 | 0.00000 | 117 | 0.00000 | 177 | 0.00000 | 237 | 0.00000 | 297 | 0.29679 | 357 | 0.292 | |||||
58 | 0.00000 | 118 | 0.00000 | 178 | 0.00000 | 238 | 0.00000 | 298 | 0.29803 | 358 | 0.29032 | |||||
59 | 0.00000 | 119 | 0.00000 | 179 | 0.00000 | 239 | 0.00000 | 299 | 0.29921 | 359 | 0.28857 |
The Engine Record Document will be used as an example of how to view other documents.

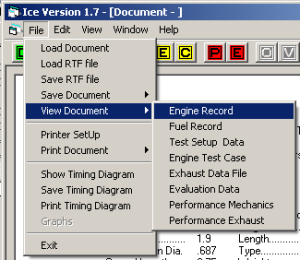

To view a document click on the File menu and select the View Document item.

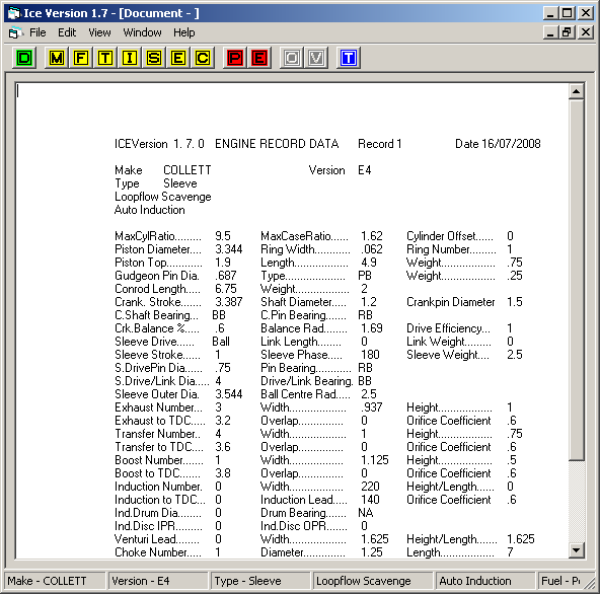

Select the Engine Record item to view the document shown below. The whole of the document may be viewed by resizing the screen or using the scroll bars (or keyboard) to move the document within the window.
